半田吸取り器 Desoldering gun (Solder sucking device)


DesolderGun

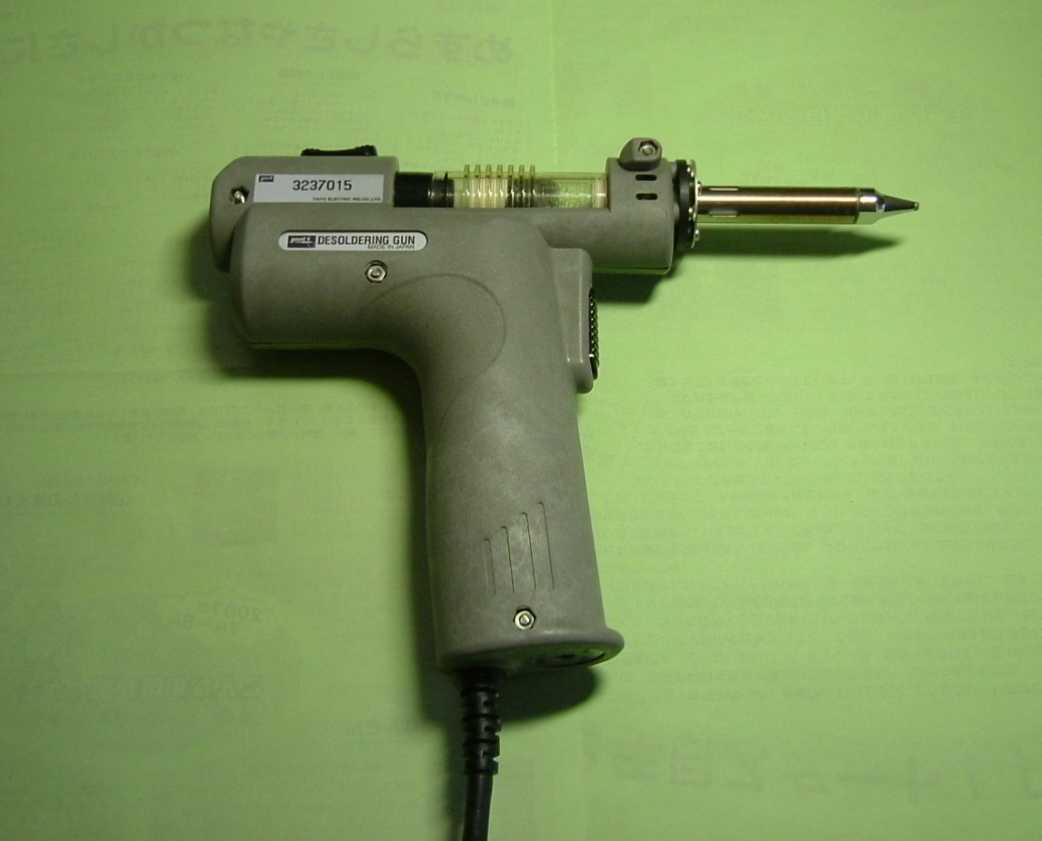

Fig.1 Gun
DesolderBox

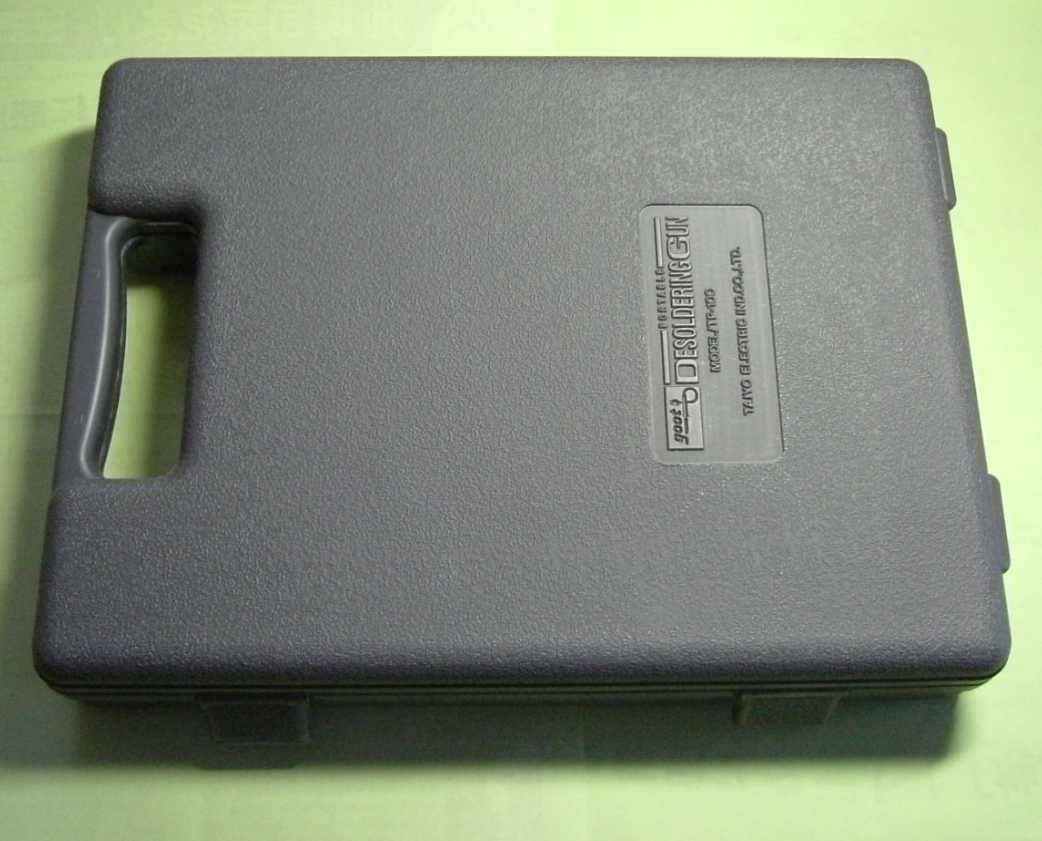

Fig.2 Case

I have bought a solder sucking device (desoldering gun) by GOOT brand. I broke the old one. Disassembling it, I found AC circuit shorten. I dropped desoledered grain in the body. This new one has no big opening. It is good.













Repair

SolderTips
Fig.3 Desoldering tips
DesolderBox
Fig.4 Used filters and new ones

クリーニングピンがチップの穴に詰まって抜けなくなり,ピンが穴の中で捩じ切れた。新しいチップと交換し,フィルタも交換した。 使用済みフィルタは交換の目安として,捨てずに保管している。

Cleaning pin was stuck in the solder sucking tip hole. So I bought a new tip and replaced it. The above one is stuck, and the below is new in Fig.3. I also replaced filters. I keep the used filters as sample when to exchange in Fig.4. The small used filter looks like cigarret filter.

メンテナンス Maintenance

DesolderPinvice
Fig.5 Pin vice with a drill for cleaning tip hole
DesolderPile
Fig.6 Piled solder on filter

こて先の穴詰まりを避けるには,クリーニングピンによる通しの他に,たまにはキリを通した方がいいだろう。

I bought a pin vice and attached 0.9mm diameter drill. Threading the drill, The tool gets larger than hole than cleaning wire pin.


Biwa Lake JAPAN
