1A ammeter consumption current 2021-10-20

Motive

Self made loader has used 1A ammeter, but the power supply wiring is messy in order to float from measuring current. Is the meter driven by batteries?

Summary

The meter displays 3 digits LED 8 segment. The consumption current was less then 14mA.

Method

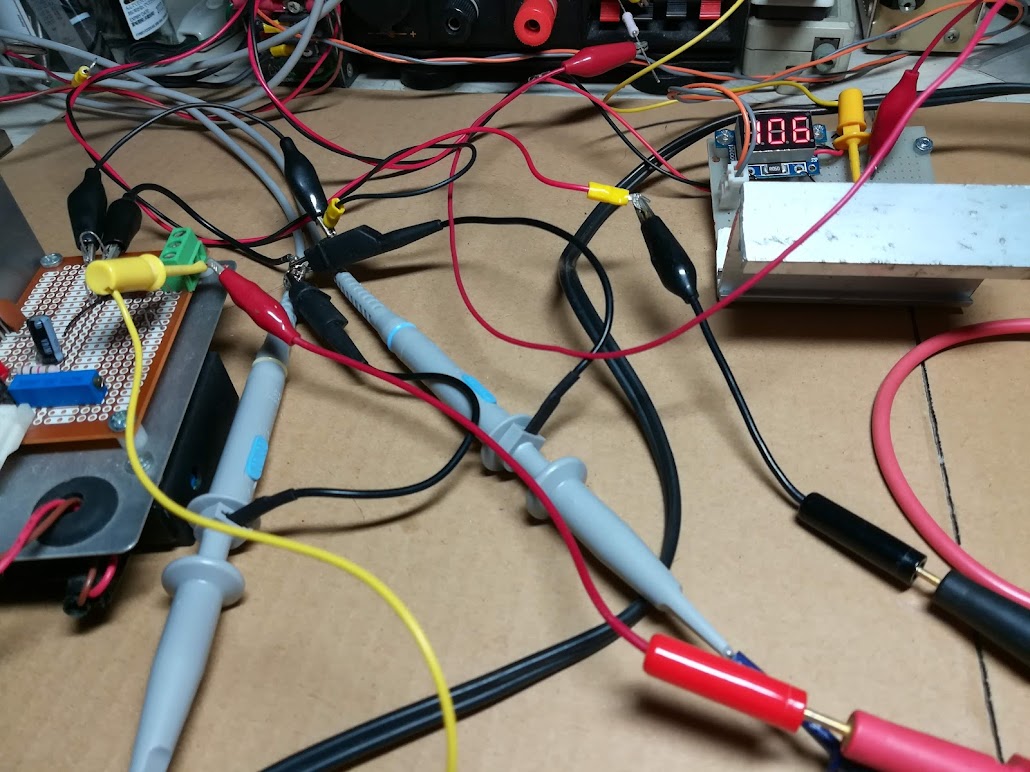

Enoki measured consumption current for 1 to 3 digits and changing power supply voltage as shown in Photo1.

1A_ammeterConsumption
Photo1 3-digit ammeter

Power supply DM-310MV set up detection current through 2W 33Ω resistor that would inflow 0.25A at 8V (2W).

Self made power supply supplied the meter. DMM PC510 measured the consumption current.

Result

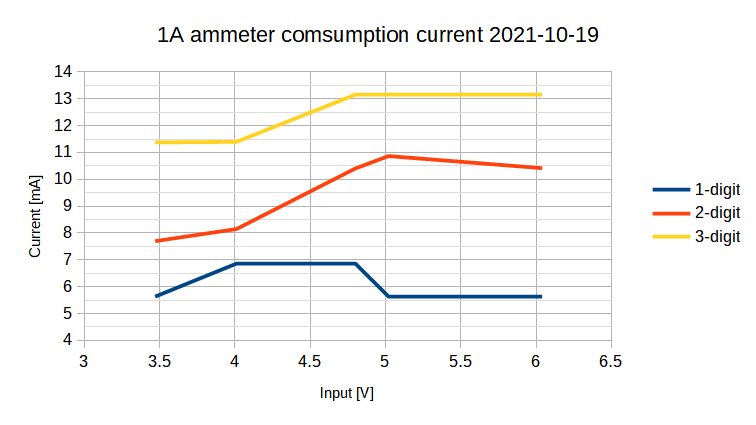

Figure1 shows the result.

AmmeterConsumption
Figure1 1A ammeter consumption current

Conclusion

The ammeter specifications describes lower working voltage 4V, but the result showed at 3.5V. As the consumption current was less than 14mA

4 deteriorated Ni-MH batteries will be able to drive it with separated GND. With batteries, the meter will work less than 4V.
