How to wire door bell into sensor 2020-02-29


Wireless door bell emits 315 MHz frequency, when one presses transmitter's button. So the bell rings, if the mechanical switch can turn on electrically.

Enoki reported "Wireless door bell range test by Arduino" before.

Photo coupler

Enoki's water level sensor is equipped with photo coupler to turn on wireless door bell switch.

Disassemble door bell

In case of Cacazi, The PWB (Printed Wiring Board) Assy appears when you open the back cover.

If you release the 4 latches by small minus screw driver and turn over the board as shown in Photo1, you will see the tact switch on the outside.

Confirm polarity

Photo coupler output has polarity,

so the coupler breaks down when you load reverse voltage.

Load power by power supply as shown in Photo2. you will find the polarity arrangement, if you measure voltage by DMM or something. Enoki has used DSO.

If you don't have any power supply, Refer the soldering points in the photos. The white wire is positive. And the gray one is GND.

Soldering wire

In case of Cacazi, thick wire may unfit because of narrow gap between the board the rubber membrane.

So, Enoki soldered AWG 28 wires at first and AWG 24.

Open a hole

Open a hole for wires. Enoki drilled 3mm diameter bit.

Working photos

Enoki uploads some photos while doing the work.

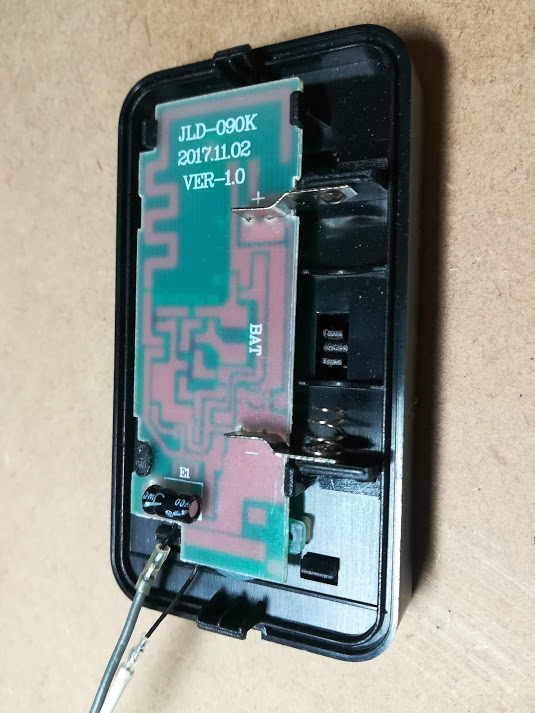

Photo1 Cacazi latches

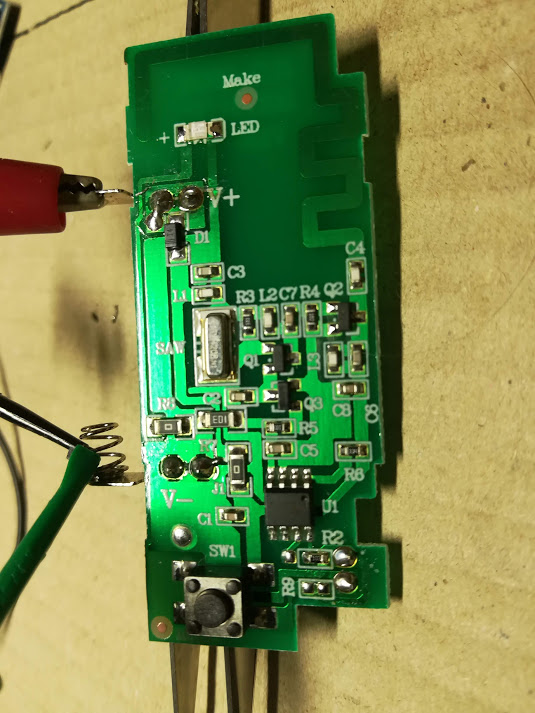

Photo2 Cacazi power

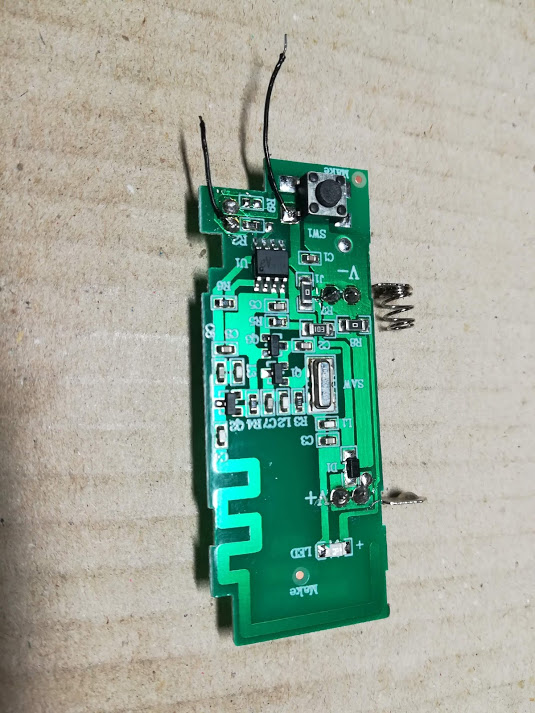

Photo3 Cacazi soldering

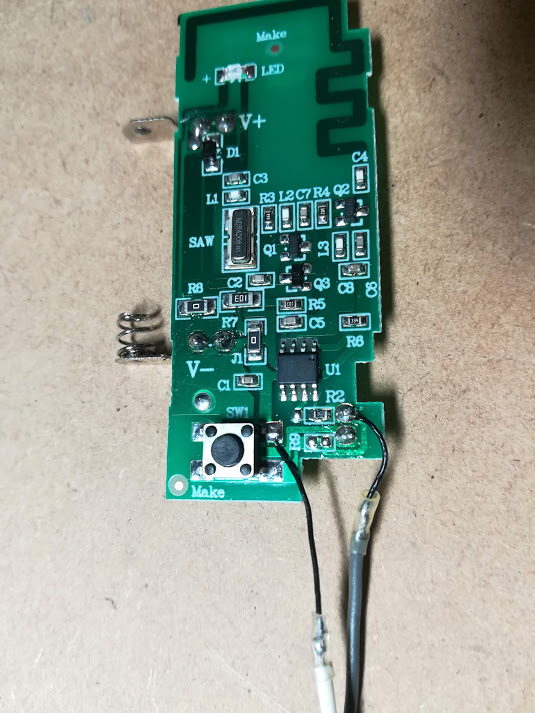

Photo4 Cacazi wiring

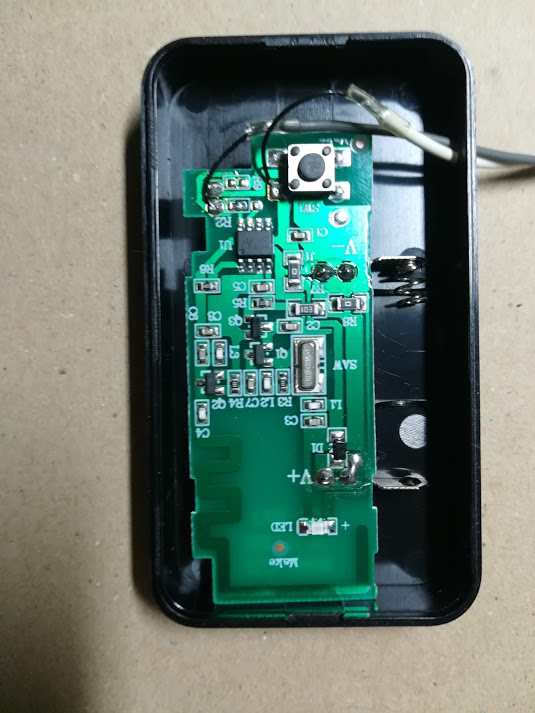

Photo5 Cacazi hole

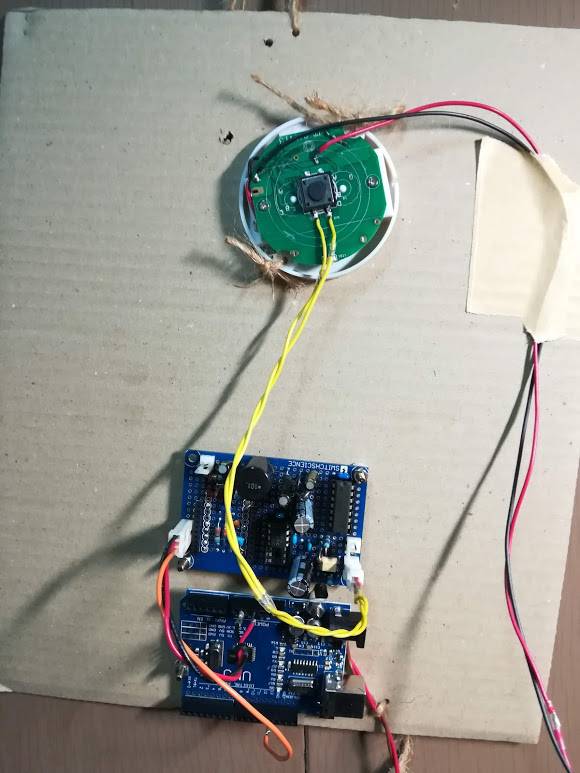

Photo6 Revex

Method and tool

Material and tool

Enoki always uses AWG 28 wire and 20W soldering iron.

Power supply is Alinco DM-310MV. DSO is Tektronix TDS2002.

Power supply

If you don't have DC power supply, I recommend buy a 12V switching power supply to test Cacazi door bell.

And if you make a simple regulator, voltage variable power supply is available.

The result

The wiring worked well.


Thin wire

Enoki always uses wrapping AWG 28 wire, but the wire 100 m is expensive.

If you remove the rubber membrane for pressing the button, you can use thick wire. But the transmitter may not emit radio wave instead of removing, when you press the button for a test.


In case of Revex, the soldering and wiring is more simple than Cacazi.

But Revex range is 1/3 of Cacazi and expensive.

The merit of Revex is battery. It works by 2 AAA batteries.
